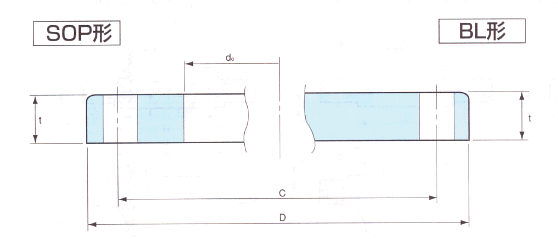

JIS B2220 16K SOP 平板法蘭屬于日標法蘭標準體系。是日標法蘭(又稱JIS法蘭)的其中一種表現(xiàn)形式，是設備或管道上常用的法蘭。以下是JIS B2220 16K SOP 平板法蘭中，相關壓力下，各部位的全部尺寸及圖示，以方便廣大法蘭從業(yè)者查詢和參考。
|
JIS B 2220-1995 JISB 2238-1996単位：mm |
|||||||||||||||||
|
呼び徑 |
適用管 の 外徑 |
內(nèi)徑 |
外徑 |
厚み |
全長 |
八ブ部分 |
ガスケット座 |
ボトル穴 |
重量(kg) |
||||||||
|
八ブ先 |
八ブ元 |
半徑 |
座厚 |
座徑 |
中心徑 |
數(shù) |
徑 |
SOP形 |
S0H形 |
BL形 |
|||||||
|
A |
B |
do |
D |
t |
T |
a |
b |
r |
r |
g |
C |
||||||
|
10 |
3/8 |
17.3 |
178 |
90 |
12 |
16 |
26 |
28 |
4 |
1 |
46 |
65 |
4 |
15 |
0.51 |
0.52 |
0.53 |
|
15 |
? |
21.7 |
22.2 |
95 |
12 |
16 |
30 |
32 |
4 |
1 |
51 |
70 |
4 |
15 |
0.56 |
0.58 |
0.60 |
|
20 |
? |
27.2 |
27.7 |
100 |
14 |
20 |
38 |
42 |
4 |
1 |
56 |
75 |
4 |
15 |
0.72 |
0.75 |
0.79 |
|
25 |
1 |
34.0 |
345 |
125 |
14 |
20 |
46 |
50 |
4 |
1 |
67 |
90 |
4 |
19 |
1.13 |
1.16 |
1.22 |
|
32 |
1? |
42.7 |
43.2 |
135 |
16 |
22 |
56 |
60 |
5 |
2 |
76 |
100 |
4 |
19 |
1.46 |
1.53 |
1.66 |
|
40 |
1? |
48.6 |
49.1 |
140 |
16 |
24 |
62 |
66 |
5 |
2 |
81 |
105 |
4 |
19 |
1.56 |
1.64 |
1.79 |
|
50 |
2 |
60.5 |
61.1 |
155 |
16 |
24 |
76 |
80 |
5 |
2 |
96 |
120 |
8 |
19 |
1.7 |
1.83 |
2.09 |
|
65 |
2? |
76.3 |
77.1 |
175 |
18 |
26 |
94 |
98 |
5 |
2 |
116 |
140 |
8 |
19 |
2.4 |
2.58 |
3.08 |
|
80 |
3 |
89.1 |
90.0 |
200 |
20 |
28 |
108 |
112 |
6 |
2 |
132 |
160 |
8 |
23 |
3.5 |
3.61 |
4.41 |
|
90 |
3? |
101.6 |
102 6 |
210 |
20 |
30 |
120 |
124 |
6 |
2 |
145 |
170 |
8 |
23 |
3.7 |
3.89 |
4.92 |
|
100 |
4 |
114.3 |
115.4 |
225 |
22 |
34 |
134 |
138 |
6 |
2 |
160 |
185 |
8 |
23 |
4.5 |
4.87 |
6.29 |
|
125 |
5 |
139.8 |
141.2 |
270 |
22 |
34 |
164 |
170 |
6 |
2 |
195 |
225 |
8 |
25 |
6.5 |
7.09 |
9 21 |
|
150 |
6 |
165.2 |
166.6 |
305 |
24 |
38 |
196 |
202 |
6 |
2 |
230 |
260 |
12 |
25 |
8.7 |
9.57 |
12.7 |
|
200 |
8 |
216.3 |
218.0 |
350 |
26 |
40 |
244 |
252 |
6 |
2 |
275 |
305 |
12 |
25 |
10.9 |
12.0 |
18.4 |
|
250 |
10 |
267.4 |
269.5 |
430 |
28 |
44 |
304 |
312 |
6 |
2 |
345 |
380 |
12 |
27 |
18.0 |
20.1 |
30.4 |
|
300 |
12 |
318.5 |
321.0 |
480 |
30 |
48 |
354 |
364 |
8 |
3 |
395 |
430 |
16 |
27 |
21.5 |
24.3 |
40.5 |
|
350 |
14 |
355.6 |
358.1 |
540 |
34 |
52 |
398 |
408 |
8 |
3 |
440 |
480 |
16 |
33 |
30.8 |
34.4 |
57.5 |
|
400 |
16 |
406.4 |
409.0 |
605 |
38 |
60 |
446 |
456 |
10 |
3 |
495 |
540 |
16 |
33 |
42.8 |
47.4 |
81.7 |
|
450 |
18 |
457.2 |
460.0 |
675 |
40 |
64 |
504 |
514 |
10 |
3 |
560 |
605 |
20 |
33 |
55.1 |
61.8 |
107.0 |
|
500 |
20 |
508.0 |
511.0 |
730 |
42 |
68 |
558 |
568 |
10 |
3 |
615 |
660 |
20 |
33 |
65.1 |
73.7 |
132.0 |
|
550 |
22 |
558.8 |
562.0 |
795 |
44 |
70 |
612 |
622 |
10 |
3 |
670 |
720 |
20 |
39 |
77.9 |
87.9 |
163.0 |
|
600 |
24 |
609.6 |
613.0 |
845 |
46 |
74 |
666 |
676 |
10 |
3 |
720 |
770 |
24 |
39 |
86.0 |
98.4 |
192.0 |
|
650 |
26 |
660.4 |
6640 |
895 |
48 |
77 |
704 |
726 |
10 |
5 |
770 |
820 |
24 |
39 |
96.3 |
101.0 |
227.5 |
|
700 |
28 |
711.2 |
715.0 |
960 |
50 |
80 |
754 |
776 |
10 |
5 |
820 |
875 |
24 |
42 |
114.1 |
120.0 |
272.6 |
|
750 |
30 |
762.0 |
7660 |
1020 |
52 |
83 |
806 |
832 |
10 |
5 |
880 |
935 |
24 |
42 |
132.7 |
141.0 |
321.9 |
|
800 |
32 |
812.8 |
8170 |
1085 |
54 |
86 |
865 |
885 |
10 |
5 |
930 |
930 |
24 |
48 |
152.1 |
161.0 |
375.6 |
|
850 |
34 |
863.6 |
868.0 |
1135 |
56 |
89 |
916 |
936 |
10 |
5 |
980 |
1040 |
24 |
48 |
166.5 |
177.0 |
428.1 |
|
900 |
36 |
914.4 |
919.0 |
1185 |
58 |
93 |
968 |
986 |
10 |
5 |
1030 |
1090 |
28 |
48 |
178.1 |
191.0 |
481.8 |
|
1000 |
40 |
1016.0 |
1021.0 |
1320 |
62 |
99 |
1070 |
1098 |
12 |
5 |
1140 |
1210 |
28 |
56 |
235.3 |
230.0 |
636.0 |
|
1100 |
44 |
1117.6 |
1123.0 |
1420 |
66 |
105 |
1180 |
1200 |
12 |
5 |
1240 |
1310 |
32 |
56 |
267.9 |
289.0 |
784.0 |
|
1200 |
48 |
1219.2 |
1224.0 |
1530 |
70 |
112 |
1282 |
1302 |
12 |
5 |
1350 |
1420 |
32 |
56 |
321.1 |
348.0 |
972.4 |
|
1300 |
52 |
1320.8 |
1326 0 |
1645 |
74 |
|
|
|
|
5 |
1450 |
1530 |
32 |
62 |
378.6 |
|
1185.2 |
|
1350 |
54 |
1371.6 |
1 377.0 |
1700 |
76 |
|
|
|
|
5 |
1510 |
1590 |
32 |
62 |
410.0 |
|
1303.8 |
|
1400 |
56 |
1422.4 |
1428.0 |
1755 |
78 |
|
|
|
|
5 |
1560 |
1640 |
36 |
62 |
436.0 |
|
1422.5 |
|
1500 |
60 |
1524.0 |
1 529.0 |
1865 |
80 |
|
|
|
|
5 |
1670 |
1750 |
36 |
62 |
496.4 |
|
1656.5 |
