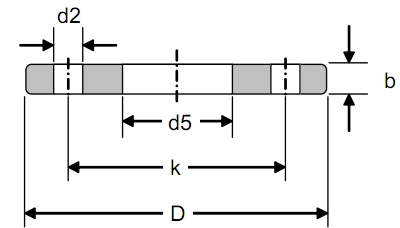

DIN 2502 PN16 PL平板法蘭屬于德標法蘭標準體系。是德標法蘭(又稱DIN法蘭)的其中一種表現形式，是設備或管道上常用的法蘭。以下是DIN 2502 PN16 PL平板法蘭中，相關壓力下，各部位的全部尺寸及圖示，以方便廣大法蘭從業者查詢和參考。
|
壓力 |
通徑 |
管徑 |
內徑 |
外徑 |
厚度 |
-- |
中心距 |
孔數 |
螺栓 |
孔徑 |
重量 |
|
|
PN |
DM |
d1 |
d5 |
D |
b |
e |
k |
-- |
-- |
d2 |
KG |
|
|
ISO |
DIN |
|||||||||||
|
DIN 2502 PN16 平板法蘭 |
10 |
17.2 |
— |
17.7 |
90 |
14 |
— |
60 |
4 |
— |
14 |
0.60 |
|
15 |
21.3 |
— |
22 |
95 |
14 |
— |
65 |
4 |
— |
14 |
0.67 |
|
|
20 |
26.9 |
— |
27.6 |
105 |
16 |
— |
75 |
4 |
— |
14 |
0.94 |
|
|
25 |
33.7 |
— |
34.4 |
115 |
16 |
— |
85 |
4 |
— |
14 |
1.11 |
|
|
32 |
42.4 |
— |
43.1 |
140 |
16 |
— |
100 |
4 |
— |
18 |
1.62 |
|
|
40 |
48.3 |
— |
49 |
150 |
16 |
— |
110 |
4 |
— |
18 |
1.86 |
|
|
50 |
60.3 |
— |
61.1 |
165 |
18 |
— |
125 |
4 |
— |
18 |
2.47 |
|
|
65 |
76.1 |
— |
77.1 |
185 |
18 |
— |
145 |
4 |
— |
18 |
3.00 |
|
|
80 |
88.9 |
— |
90.3 |
200 |
20 |
— |
160 |
8 |
— |
18 |
3.61 |
|
|
100 |
114.3 |
— |
115.9 |
220 |
20 |
-- |
180 |
8 |
— |
18 |
4.00 |
|
|
125 |
139.7 |
— |
141.6 |
250 |
22 |
— |
210 |
8 |
— |
18 |
5.41 |
|
|
150 |
168.3 |
— |
170.5 |
285 |
22 |
— |
240 |
8 |
— |
22 |
6.55 |
|
|
175 |
193.7 |
— |
196.1 |
315 |
24 |
— |
270 |
8 |
— |
22 |
8.43 |
|
|
200 |
219.1 |
— |
221.8 |
340 |
24 |
— |
295 |
12 |
— |
22 |
8.97 |
|
|
250 |
273 |
— |
276.2 |
405 |
26 |
— |
355 |
12 |
— |
26 |
12.77 |
|
|
300 |
323.9 |
— |
327.6 |
460 |
28 |
— |
410 |
12 |
— |
26 |
16.61 |
|
|
350 |
355.6 |
— |
359.7 |
520 |
30 |
— |
470 |
16 |
— |
26 |
24.10 |
|
|
400 |
406.4 |
— |
411 |
580 |
32 |
— |
525 |
16 |
— |
30 |
30.22 |
|
|
450 |
457 |
— |
462.3 |
640 |
38 |
— |
585 |
20 |
— |
30 |
41.71 |
|
|
500 |
508 |
— |
513.6 |
715 |
38 |
— |
650 |
20 |
— |
33 |
52.91 |
|
|
600 |
610 |
— |
616.5 |
840 |
42 |
— |
770 |
20 |
— |
36 |
77.64 |
|
|
700 |
711 |
— |
716 |
910 |
44 |
— |
840 |
24 |
— |
36 |
77.19 |
|
|
800 |
813 |
— |
818 |
1025 |
50 |
— |
950 |
24 |
— |
39 |
106.43 |
|
|
900 |
914 |
— |
920 |
1125 |
54 |
— |
1050 |
28 |
— |
39 |
125.49 |
|
|
1000 |
1016 |
— |
1022 |
1255 |
60 |
— |
1170 |
28 |
— |
42 |
178.12 |
|
